4.1 Bayesian NN (Disinfection Efficiency)

This file shows how to record epistemic uncertainty in a neural network for modeling Cell Count data.

import numpy as np

from easy_mpl import plot

import matplotlib.pyplot as plt

from SeqMetrics import RegressionMetrics

from ai4water.utils import TrainTestSplit
from ai4water.postprocessing import ProcessPredictions

from utils import SAVE
from utils import read_data, BayesModel, version_info
from utils import set_rcParams, residual_plot, regression_plot

for lib, ver in version_info().items():
    print(lib, ver)

python 3.9.20 (main, Nov  5 2024, 16:07:55)
[GCC 11.4.0]
os posix
ai4water 1.07
easy_mpl 0.21.4
SeqMetrics 2.0.0
tensorflow 2.10.1
keras.api._v2.keras 2.10.0
numpy 1.21.6
pandas 1.5.3
matplotlib 3.7.1
h5py 3.13.0
sklearn 1.3.1
seaborn 0.13.2
ngboost 0.4.1
shap 0.41.0

set_rcParams()

data = read_data()

input_features = data.columns.tolist()[0:-1]
output_features = data.columns.tolist()[-1:]


TrainX, TestX, TrainY, TestY = TrainTestSplit(seed=313).split_by_random(
    data[input_features],
    data[output_features]
)

print(TrainX.shape, TestX.shape, TrainY.shape, TestY.shape)

(219, 6) (95, 6) (219, 1) (95, 1)

hyperparameters

hidden_units = [5, 5]
learning_rate = 0.00472268229046
activation = "elu"
train_size = len(TrainX)

num_epochs = 5000
batch_size = 32

Build model

model = BayesModel(
    model = {"layers": dict(hidden_units=hidden_units,
                            train_size=train_size,
                            activation=activation
                            )},
    batch_size=batch_size,
    epochs=num_epochs,
    lr=learning_rate,
    input_features=input_features,
    output_features=output_features,
    category= "DL",
    y_transformation="robust",
    optimizer="RMSprop",
    x_transformation=[
        {"method": "log2", "features": ["Time (min)"], "replace_zeros": True},
        {"method": "quantile", "features": ["Ini. CC"]},
        #{"method": "log2", "features": ["sonic_pd"]},
        {"method": "quantile", "features": ["h20 Conc."]},
        {"method": "quantile", "features": ["Volume (mL)"]},
        {"method": "log10", "features": ["Solution pH"]},
    ]
    #wandb_config=dict(project="flowcam", entity="atherabbas", monitor="val_loss")
)

            building DL model for
            regression problem using layers
Model: "model"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 input_1 (InputLayer)        [(None, 6)]               0

 batch_normalization (BatchN  (None, 6)                24
 ormalization)

 dense_variational (DenseVar  (None, 5)                665
 iational)

 dense_variational_1 (DenseV  (None, 5)                495
 ariational)

 dense (Dense)               (None, 1)                 6

=================================================================
Total params: 1,190
Trainable params: 1,178
Non-trainable params: 12
_________________________________________________________________
dot plot of model could not be plotted due to You must install pydot (`pip install pydot`) and install graphviz (see instructions at https://graphviz.gitlab.io/download/) for plot_model to work.

model training

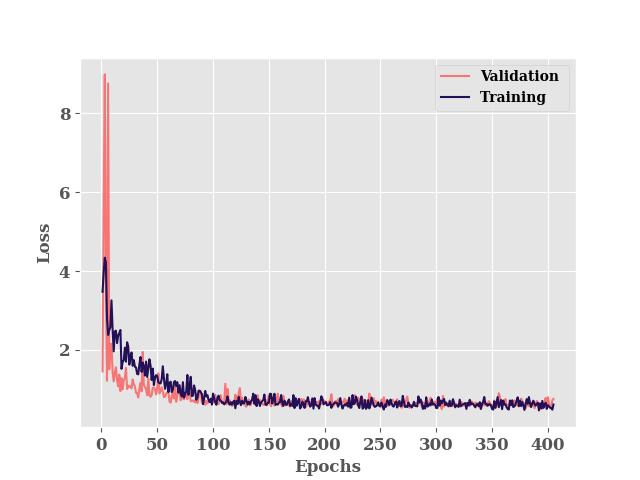

model.fit(TrainX, TrainY, validation_data=(TestX, TestY),
          verbose=0)

********** Successfully loaded weights from weights_305_0.49733.hdf5 file **********

<keras.callbacks.History object at 0x7a6bd2c40eb0>

training results

train_predictions = []
for i in range(100):
    train_predictions.append(model.predict(TrainX, verbose=0))
train_predictions =  np.concatenate(train_predictions, axis=1)

train_std = np.std(train_predictions, axis=1)
train_mean = np.mean(train_predictions, axis=1)

metrics = RegressionMetrics(TrainY, train_mean)
print(f"R2: {metrics.r2()}")
print(f"R2 Score: {metrics.r2_score()}")
print(f"RMSE Score: {metrics.rmse()}")
print(f"MAE: {metrics.mae()}")

R2: 0.7626992844691637
R2 Score: 0.7598204574089047
RMSE Score: 10.599818849806407
MAE: 7.110052656580932

processor = ProcessPredictions(
    mode="regression", forecast_len=1,
    path=model.path
)

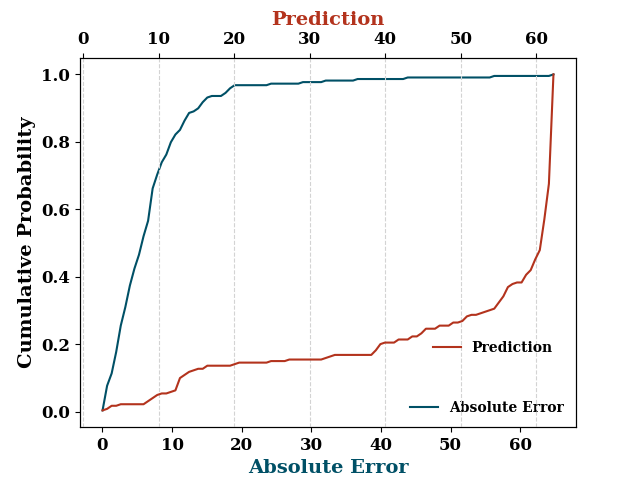

processor.edf_plot(TrainY, train_mean)

[<Axes: xlabel='Absolute Error', ylabel='Cumulative Probability'>, <Axes: xlabel='Prediction', ylabel='Cumulative Probability'>]

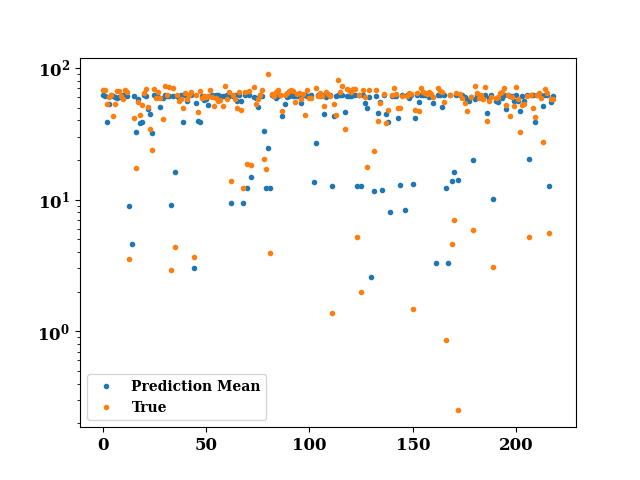

plot(train_mean, '.', label="Prediction Mean", show=False)
plot(TrainY.values, '.', label="True", ax_kws=dict(logy=True))

<Axes: >

test results

test_predictions = []
for i in range(100):
    test_predictions.append(model.predict(TestX, verbose=0))

test_predictions =  np.concatenate(test_predictions, axis=1)

print(test_predictions.shape)

(95, 100)

test_std = np.std(test_predictions, axis=1)
test_mean = np.mean(test_predictions, axis=1)

metrics = RegressionMetrics(TestY, test_mean)
print(f"R2: {metrics.r2()}")
print(f"R2 Score: {metrics.r2_score()}")
print(f"RMSE Score: {metrics.rmse()}")
print(f"MAE: {metrics.mae()}")

R2: 0.5253671948580712
R2 Score: 0.5168349412606081
RMSE Score: 12.59022948084163
MAE: 7.764020284664509

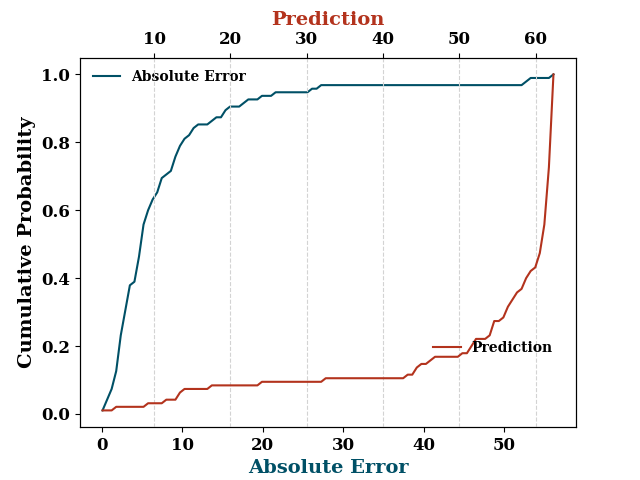

processor.edf_plot(TestY, test_mean)

[<Axes: xlabel='Absolute Error', ylabel='Cumulative Probability'>, <Axes: xlabel='Prediction', ylabel='Cumulative Probability'>]

if model.use_wb:
    model.wb_finish()

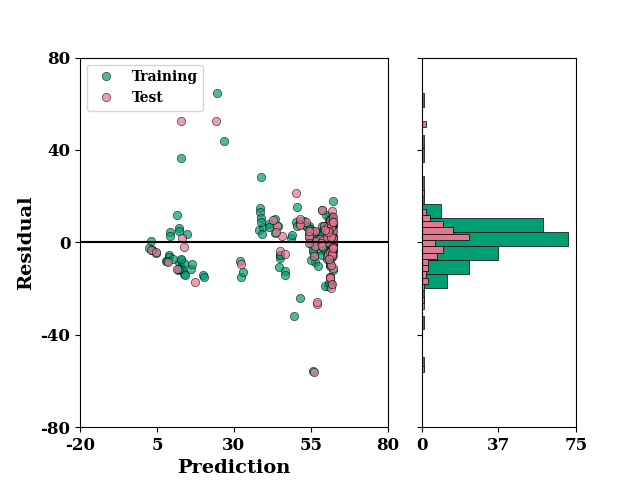

residual_plot(
    TrainY.values,
    train_mean,
    TestY.values,
    test_mean,
    #label="Cell Count"
)
if SAVE:
    plt.savefig("results/figures/residue_bayes_eff", dpi=600, bbox_inches="tight")
plt.show()

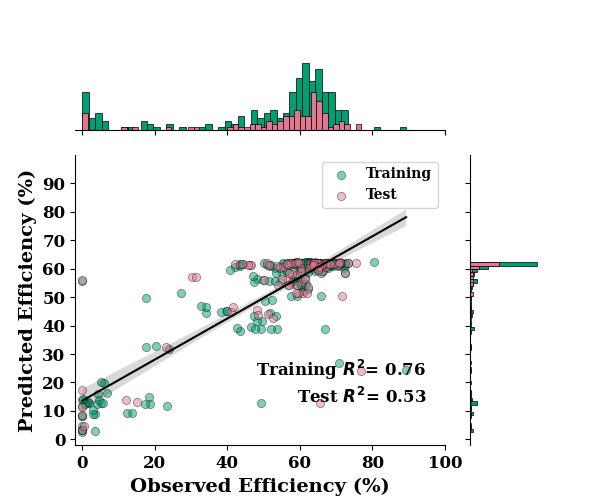

ax = regression_plot(
    TrainY.values, train_mean,
    TestY.values, test_mean,
    max_ticks=None,
    label="Efficiency (%)"
)
ax.set_xlim([-2, 100])
ax.set_ylim([-2, 100])
if SAVE:
    plt.savefig("results/figures/reg_bayes_eff", dpi=600, bbox_inches="tight")
plt.show()

*c* argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with *x* & *y*.  Please use the *color* keyword-argument or provide a 2D array with a single row if you intend to specify the same RGB or RGBA value for all points.

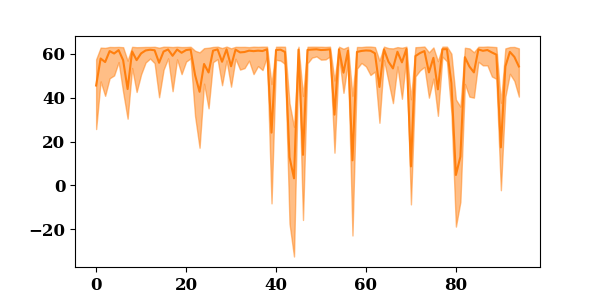

lower = np.min(test_predictions, axis=1)
upper = np.max(test_predictions, axis=1)
_, ax = plt.subplots(figsize=(6, 3))
ax.fill_between(np.arange(len(lower)), upper, lower, alpha=0.5, color='C1')
p1 = ax.plot(test_mean, color="C1", label="Prediction")
p2 = ax.fill(np.NaN, np.NaN, color="C1", alpha=0.5)
plt.show()
